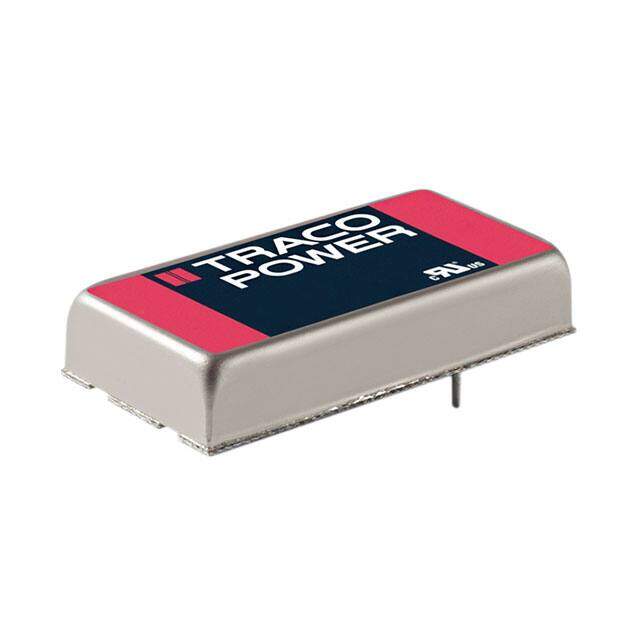

TEN 20-4822WIR
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 20W
PDF
/
Buying Options
Total Price: USD $74.94
Unit Price: USD $74.9408
≥1 USD $74.9408
≥10 USD $68.31352
≥100 USD $66.14432
≥500 USD $62.891488
≥1000 USD $58.554144
≥3000 USD $53.68
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2012
Series TEN 20WIR (20W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Railway
Power (Watts) 20W
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-T6
Number of Outputs 2
Efficiency 88%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 833mA 833mA
Voltage - Output 2 -12V
Dimensions
Height Seated (Max) 10.7mm
Length 50.8mm
Compliance
RoHS Status ROHS3 Compliant
