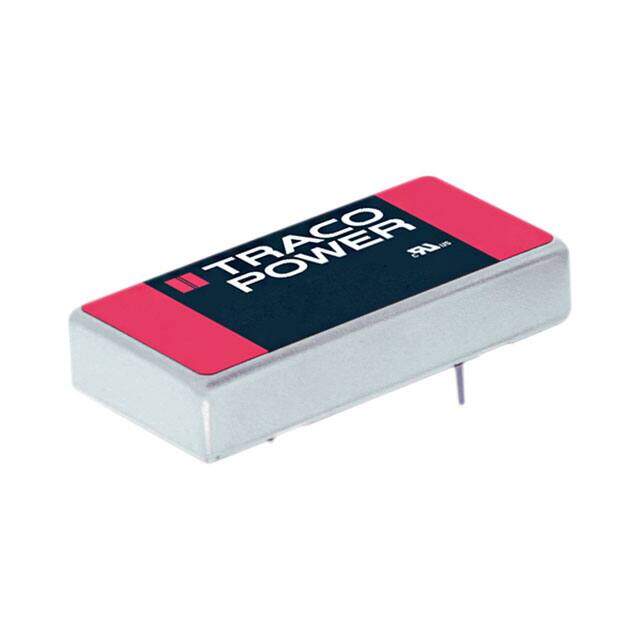

TEN 20-1212
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 20W
PDF
/
Buying Options
Total Price: USD $57.57
Unit Price: USD $57.5696
≥1 USD $57.5696
≥10 USD $52.48056
≥100 USD $50.81472
≥500 USD $48.315696
≥1000 USD $44.983488
≥3000 USD $41.238982
Inventory: 517
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Series TEN 20 (20W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 20W
Additional Feature SEATED HGT CALCULATED
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-T6
Number of Outputs 1
Efficiency 88%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 18V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 1.67A
Total Power Output-Max 20W
Dimensions
Length 50.8mm
Width 25.4mm
Compliance
RoHS Status ROHS3 Compliant
