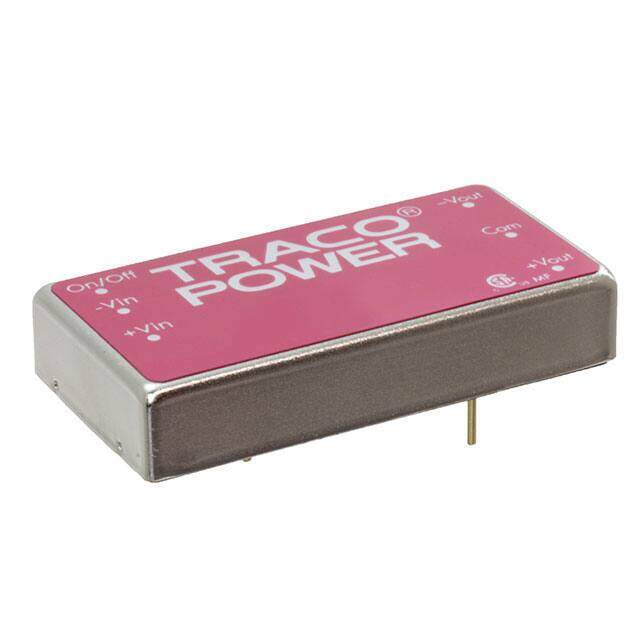

TEN 15-4812WI
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 15W
PDF
/
Buying Options
Total Price: USD $54.33
Unit Price: USD $54.3312
≥1 USD $54.3312
≥10 USD $48.5188
≥100 USD $46.978976
≥500 USD $44.668448
≥1000 USD $41.587832
≥3000 USD $38.126
Inventory: 86
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 25.4mm
Length 50.8mm
Technical
Current - Output (Max) 1.25A
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-P6
Pin Count 6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 15W
Applications ITE (Commercial)
Terminal Finish Nickel (Ni)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Not For New Designs
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series TEN 15WI (15W)
Published 2010
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 6-DIP Module, 5 Leads
Mounting Type Through Hole
