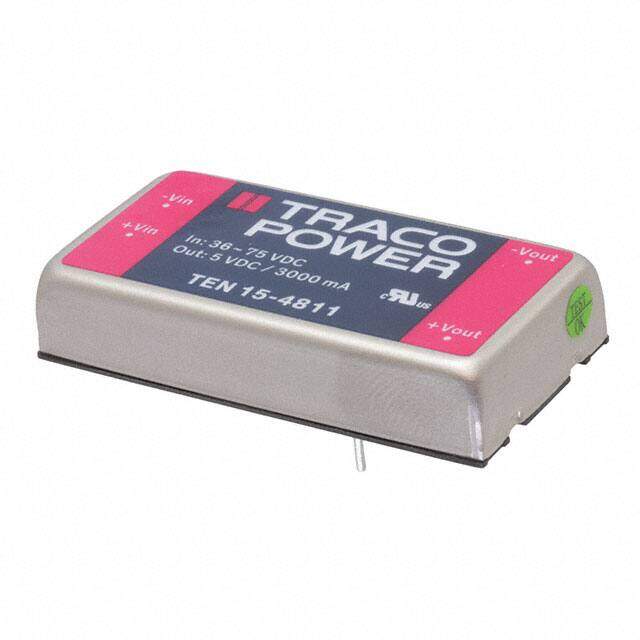

TEN 15-4811
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 15W
PDF
/
Buying Options
Total Price: USD $46.11
Unit Price: USD $46.112
≥1 USD $46.112
≥10 USD $41.21216
≥100 USD $39.903424
≥500 USD $37.941024
≥1000 USD $35.324432
≥3000 USD $34.801149
Inventory: 153
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2010
Series TEN 15 (15W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature OCP, OVP, SCP
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Terminal Finish NICKEL
Applications ITE (Commercial)
Power (Watts) 15W
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 5
JESD-30 Code R-MDMA-P5
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 83%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 75V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 3A
Dimensions
Length 50.8mm
Width 25.4mm
Compliance
RoHS Status ROHS3 Compliant
