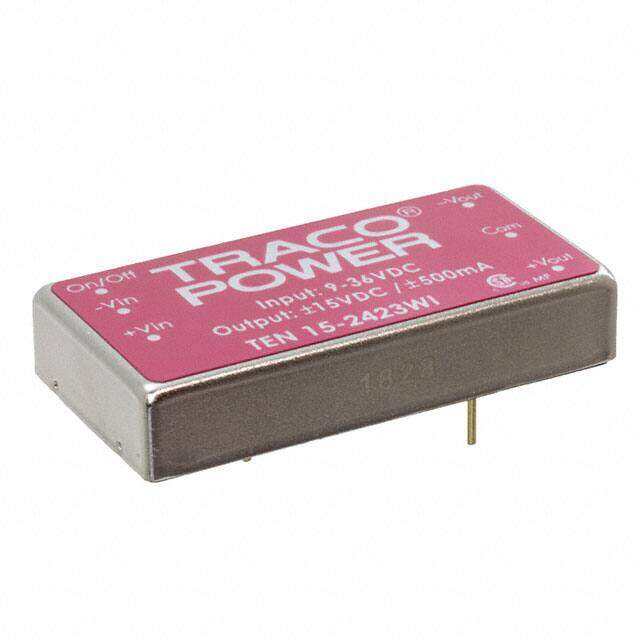

TEN 15-2423WI
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 15W
PDF
/
Buying Options
Total Price: USD $58.12
Unit Price: USD $58.124
≥1 USD $58.124
≥10 USD $51.9068
≥100 USD $50.258912
≥500 USD $47.787168
≥1000 USD $44.491568
≥3000 USD $40.788
Inventory: 140
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2010
Series TEN 15WI (15W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, SCP
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Terminal Finish NICKEL
Applications ITE (Commercial)
Power (Watts) 15W
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 6
JESD-30 Code R-XDMA-P6
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 86%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 500mA 500mA
Voltage - Output 2 -15V
Dimensions
Height Seated (Max) 10.7mm
Length 50.8mm
Compliance
RoHS Status ROHS3 Compliant
