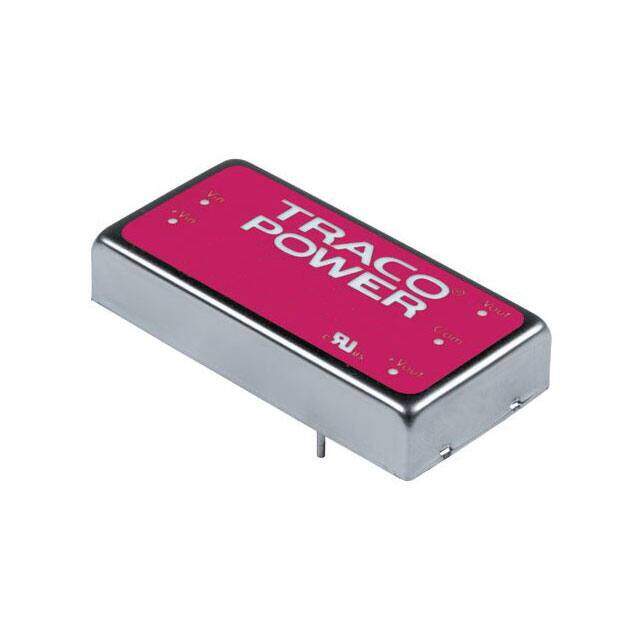

TEN 15-1210
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 13W
PDF
/
Inventory: 8568
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output (Max) 4A
Voltage - Input (Min) 9V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 18V
Voltage - Isolation 1.6kV
Efficiency 79%
Qualification Status Not Qualified
Number of Outputs 1
Subcategory Other Analog ICs
Power (Watts) 13W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Not For New Designs
Feature OCP, OVP, SCP
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series TEN 15 (15W)
Operating Temperature -40°C~85°C With Derating
Physical
Package / Case 5-DIP Module, 4 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
