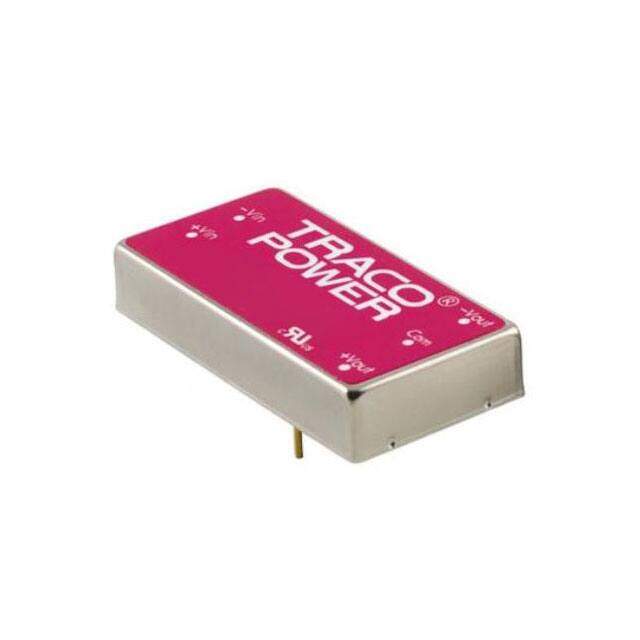

TEN 12-4813
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V 12W
PDF
/
Inventory: 3122
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Series TEN 12WI (12W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OCP, OVP, SCP
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 4
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 12W
Additional Feature SEATED HGT CALCULATED
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-T4
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 84%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 800mA
Dimensions
Length 50.8mm
Width 25.4mm
Compliance
RoHS Status ROHS3 Compliant
