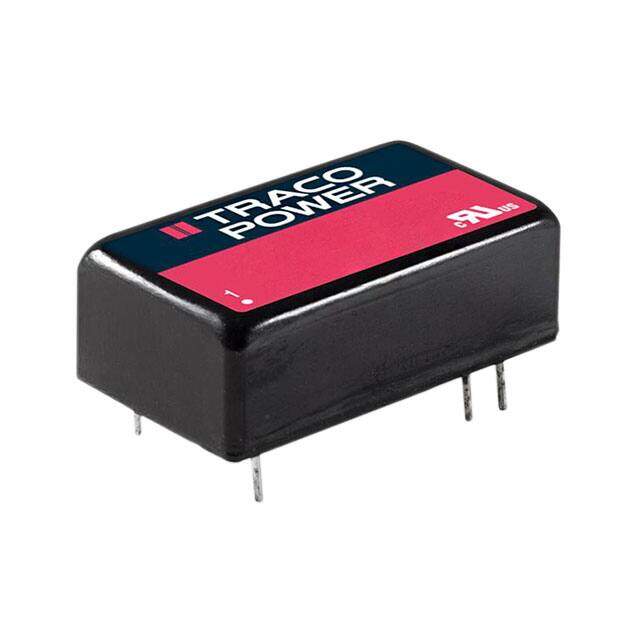

TEL 8-4823WI
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V 15V 8W
PDF
/
Inventory: 7631
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 14mm
Technical
Total Power Output-Max 7.95W
Current - Output (Max) 265mA 265mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 86%
Number of Outputs 2
JESD-30 Code R-MDMA-P6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 8W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
JESD-609 Code e3
Size / Dimension 0.95Lx0.55W x 0.33 H 24.1mmx14.0mmx8.5mm
Series TEL 8WI (8W)
Operating Temperature -40°C~80°C With Derating
Physical
Surface Mount NO
Package / Case 16-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
