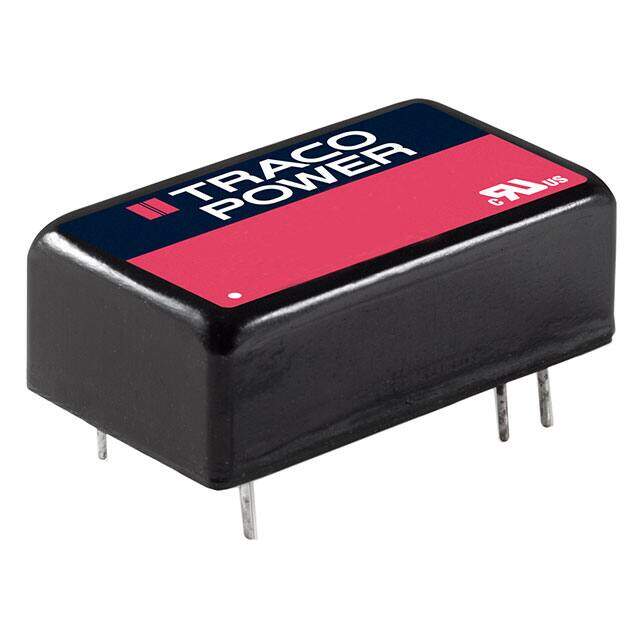

TEL 8-1210
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 5.3W
PDF
/
Buying Options
Total Price: USD $19.31
Unit Price: USD $19.3072
≥1 USD $19.3072
≥10 USD $18.95608
≥100 USD $18.660224
≥500 USD $17.7716
≥1000 USD $16.29056
≥3000 USD $15.994387
Inventory: 42
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 16-DIP Module, 6 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~80°C
Published 2015
Series TEL 8 (8W)
Size / Dimension 0.95Lx0.55W x 0.33 H 24.1mmx14.0mmx8.5mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 5.3W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 12V
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-P6
Number of Outputs 1
Approval Agency UL, EN, IEC
Efficiency 78%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 18V
Output Voltage 3.3V
Voltage - Output 1 3.3V
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 1.6A
Protections OUTPUT OVER CURRENT
Control Mode VOLTAGE-MODE
Total Power Output-Max 5.28W
Dimensions
Height 9mm
Height Seated (Max) 9mm
Compliance
RoHS Status ROHS3 Compliant
