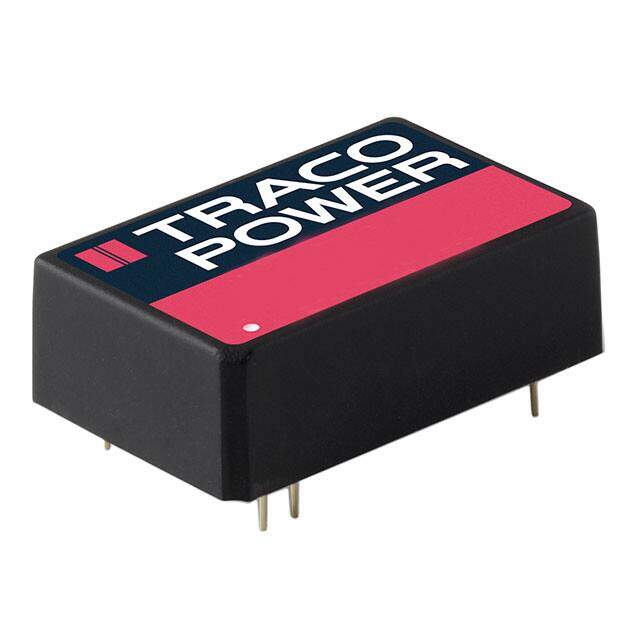

TEL 5-2411
RoHS
RoHS compliant
RoHS compliantPackage 23-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 5W
PDF
/
Buying Options
Total Price: USD $16.91
Unit Price: USD $16.9136
≥1 USD $16.9136
≥10 USD $15.9412
≥100 USD $15.692512
≥500 USD $14.945216
≥1000 USD $13.699752
≥3000 USD $13.450659
Inventory: 430
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 23-DIP Module, 7 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2006
Series TEL 5 (5W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 5W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P8
Number of Outputs 1
Efficiency 83%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 1A
Total Power Output-Max 5W
Dimensions
Length 32mm
Width 20.3mm
Compliance
RoHS Status ROHS3 Compliant
