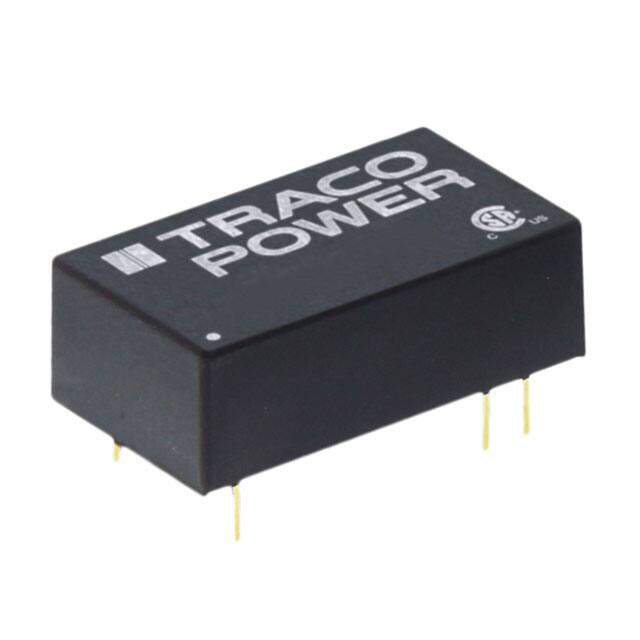

TEL 2-4811
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 2W
PDF
/
Buying Options
Total Price: USD $14.04
Unit Price: USD $14.0448
≥1 USD $14.0448
≥10 USD $10.26256
Inventory: 100
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 23.8mm
Height Seated (Max) 7.87mm
Technical
Total Power Output-Max 2W
Current - Output (Max) 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 73%
Number of Outputs 1
JESD-30 Code R-PDMA-P6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.94Lx0.54W x 0.31 H 23.8mmx13.7mmx8.0mm
Series TEL 2 (2W)
Published 2010
Operating Temperature -40°C~75°C
Physical
Surface Mount NO
Package / Case 16-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
