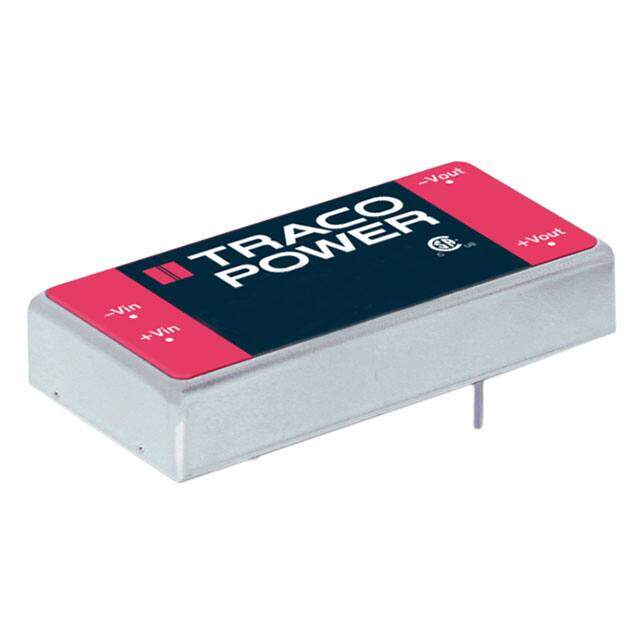

TEL 15-2411

Traco Power
RoHS
RoHS RoHS compliant
Package 5-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5.1V 15W
PDF
/
Buying Options
Total Price: USD $39.83
Unit Price: USD $39.8288
≥1 USD $39.8288
≥10 USD $37.01192
≥100 USD $35.837472
≥500 USD $34.074832
≥1000 USD $31.724792
≥3000 USD $31.254819
Inventory: 126
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 25.4mm
Length 50.8mm

Technical

Current - Output (Max) 3A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 5.1V
Output Voltage 5.1V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 81%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-P4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 15W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series TEL 15 (15W)
Published 2010
Operating Temperature -40°C~80°C

Physical

Surface Mount NO
Package / Case 5-DIP Module, 4 Leads
Mounting Type Through Hole

Supply Chain

Factory Lead Time 11 Weeks
