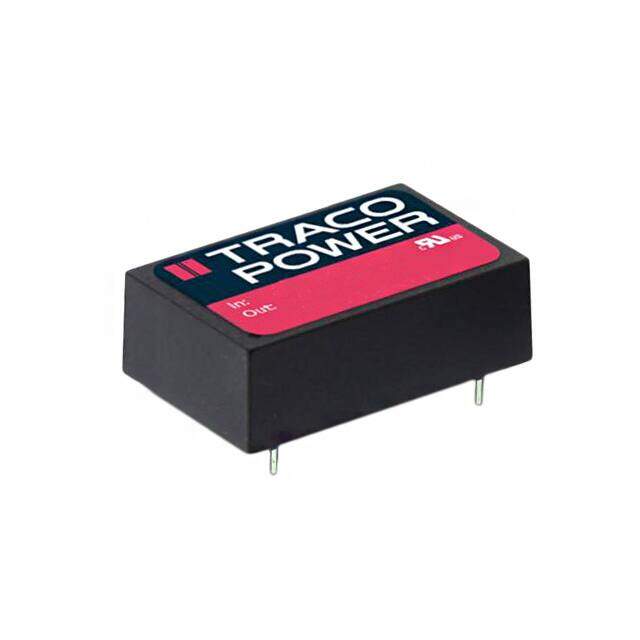

TEL 10-4810
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC 1"X1" OUTPUT PWR (W) 15 IN
PDF
/
Buying Options
Total Price: USD $23.37
Unit Price: USD $23.3728
≥1 USD $23.3728
≥10 USD $23.00936
≥100 USD $22.649792
≥500 USD $21.571264
≥1000 USD $19.7736
≥3000 USD $19.414067
Inventory: 107
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 23.8mm
Height Seated (Max) 8.5mm
Height 8.5mm
Technical
Warm-up Time 0.03 s
Switching Frequency-Max 485kHz
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Current - Output (Max) 2.7A
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.8kV
Efficiency 80%
Approval Agency EN, IEC, UL
Number of Outputs 1
JESD-30 Code R-MDMA-P6
Terminal Pitch 2.54mm
Supply Voltage 48V
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 8.9W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature OCP, SCP
Size / Dimension 0.94Lx0.54W x 0.31 H 23.8mmx13.7mmx8.0mm
Series TEL 10 (10W)
Operating Temperature -40°C~78°C
Physical
Surface Mount NO
Package / Case 16-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 1 Weeks
