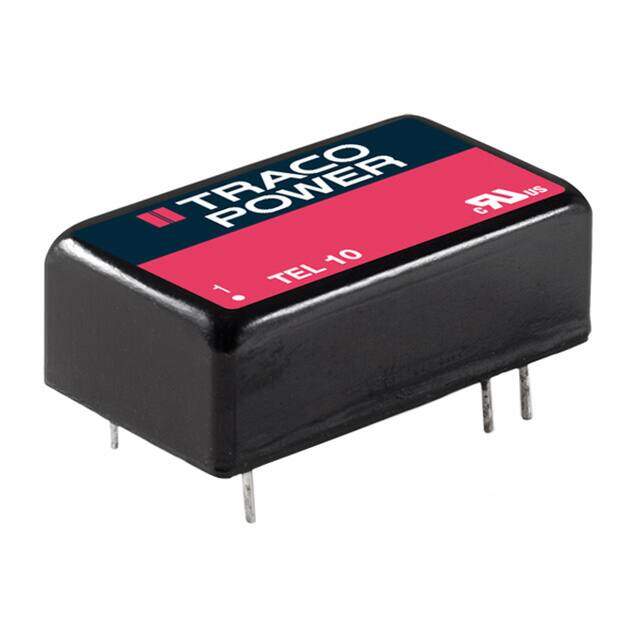

TEL 10-2422WI
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 10W
PDF
/
Buying Options
Total Price: USD $26.27
Unit Price: USD $26.268
≥1 USD $26.268
≥10 USD $25.8676
≥100 USD $25.463328
≥500 USD $24.250864
≥1000 USD $22.230032
≥3000 USD $21.82583
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Through Hole
Package / Case 16-DIP Module, 6 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~88°C With Derating
Series TEL 10WI (10W)
Size / Dimension 0.94Lx0.54W x 0.31 H 23.8mmx13.7mmx8.0mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Supply Voltage 24V
JESD-30 Code R-MDMA-P6
Number of Outputs 2
Approval Agency EN, IEC, UL
Efficiency 87%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 416mA 416mA
Protections OUTPUT OVER CURRENT
Voltage - Output 2 -12V
Control Mode VOLTAGE-MODE
Total Power Output-Max 10W
Switching Frequency-Max 485kHz
Warm-up Time 0.03 s
Dimensions
Height 8.5mm
Height Seated (Max) 8.5mm
Width 13.7mm
Compliance
RoHS Status ROHS3 Compliant
