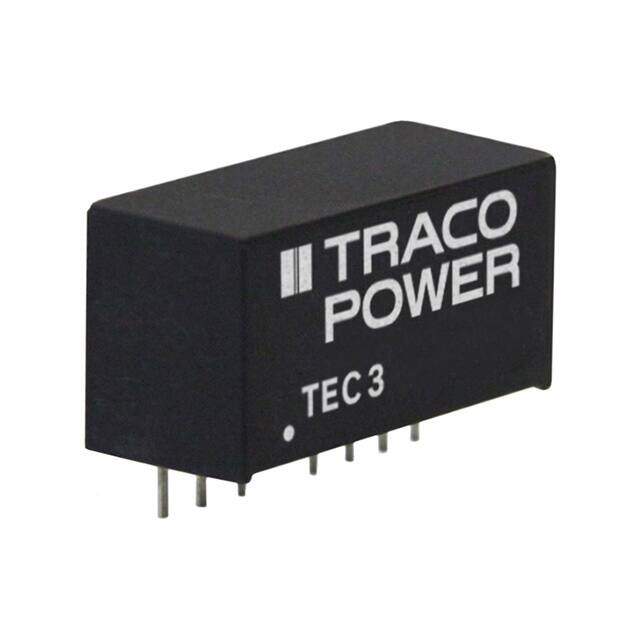

TEC 3-4811
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 3W
PDF
/
Buying Options
Total Price: USD $11.11
Unit Price: USD $11.1098
≥1 USD $11.1098
≥10 USD $10.48094
≥100 USD $9.88768
≥500 USD $9.328
≥1000 USD $8.8
≥3000 USD $8.30189
Inventory: 2560
Minimum: 1
-
+
Technical Details
Technical
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 3W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T7
Number of Outputs 1
Efficiency 80%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 75V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 600mA
Total Power Output-Max 3W
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.1mmx11.2mm
Series TEC 3 (3W)
Operating Temperature -40°C~90°C With Derating
Compliance
RoHS Status ROHS3 Compliant
Physical
Surface Mount NO
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
