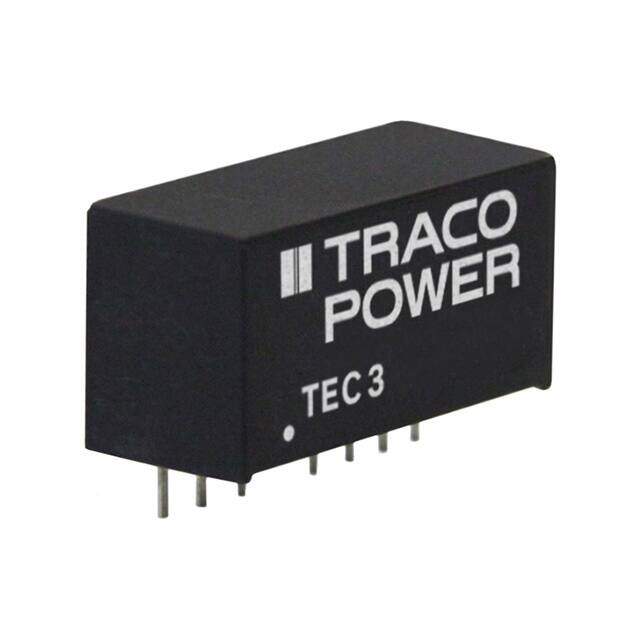

TEC 3-1222
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 3W
PDF
/
Buying Options
Total Price: USD $11.87
Unit Price: USD $11.86728
≥1 USD $11.86728
≥10 USD $11.19555
≥100 USD $10.56184
≥500 USD $9.964
≥1000 USD $9.4
≥3000 USD $8.86792
Inventory: 5100
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.1mm
Height Seated (Max) 11.7mm
Technical
Total Power Output-Max 3W
Voltage - Output 2 -12V
Current - Output (Max) 125mA 125mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 18V
Voltage - Isolation 1.6kV
Efficiency 85%
Number of Outputs 2
JESD-30 Code R-PSMA-T7
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.1mmx11.2mm
Series TEC 3 (3W)
Operating Temperature -40°C~90°C With Derating
Physical
Surface Mount NO
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
