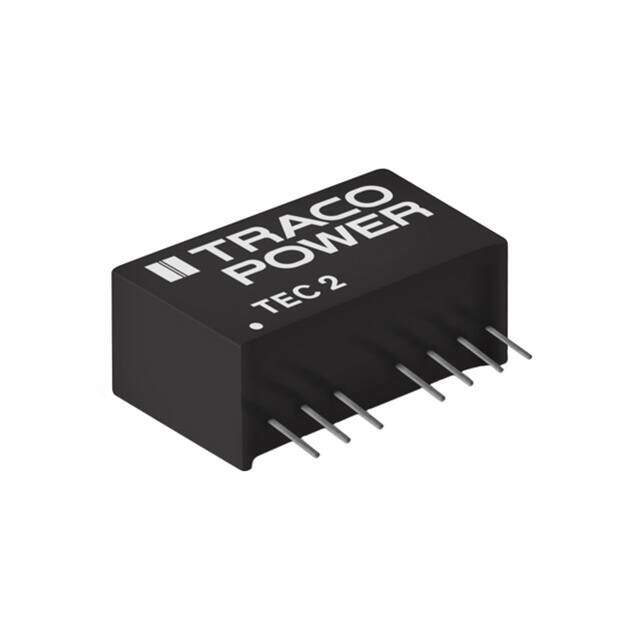

TEC 2-2421
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 2W
PDF
/
Buying Options
Total Price: USD $9.83
Unit Price: USD $9.8296
≥1 USD $9.8296
≥10 USD $9.67648
≥100 USD $9.527936
≥500 USD $9.230144
≥1000 USD $8.336944
≥3000 USD $8.188083
Inventory: 91
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~95°C With Derating
Series TEC 2 (2W)
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.1mmx11.2mm
Feature Remote On/Off, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 2W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
JESD-30 Code R-PSMA-T7
Number of Outputs 2
Efficiency 83%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 36V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 200mA 200mA
Voltage - Output 2 -5V
Total Power Output-Max 2W
Dimensions
Height Seated (Max) 11.7mm
Width 9.1mm
Compliance
RoHS Status ROHS3 Compliant
