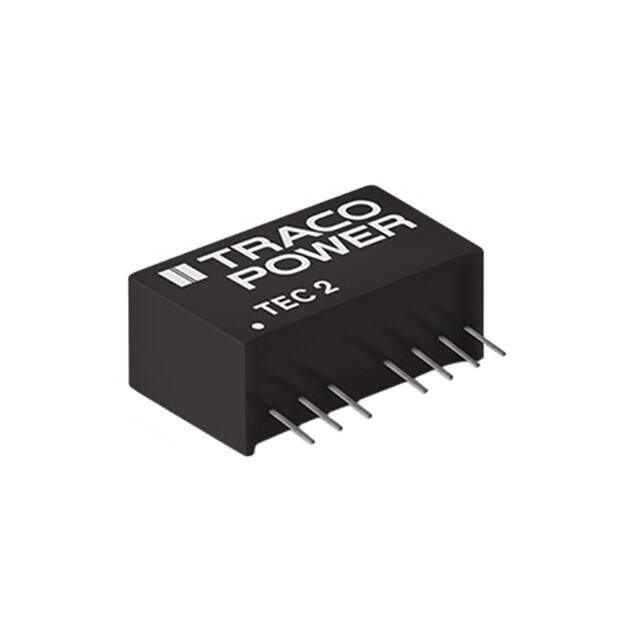

TEC 2-1222WI
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 2W
PDF
/
Buying Options
Total Price: USD $10.81
Unit Price: USD $10.8064
≥1 USD $10.8064
≥10 USD $10.64448
≥100 USD $10.4808
≥500 USD $10.153264
≥1000 USD $9.170656
≥3000 USD $9.00687
Inventory: 66
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -12V
Current - Output (Max) 83mA 83mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 12V
Voltage - Input (Max) 18V
Voltage - Isolation 1.6kV
Efficiency 82%
Number of Outputs 2
Power (Watts) 2W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
JESD-609 Code e3
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.1mmx11.2mm
Series TEC 2WI (2W)
Operating Temperature -40°C~93°C With Derating
Physical
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
