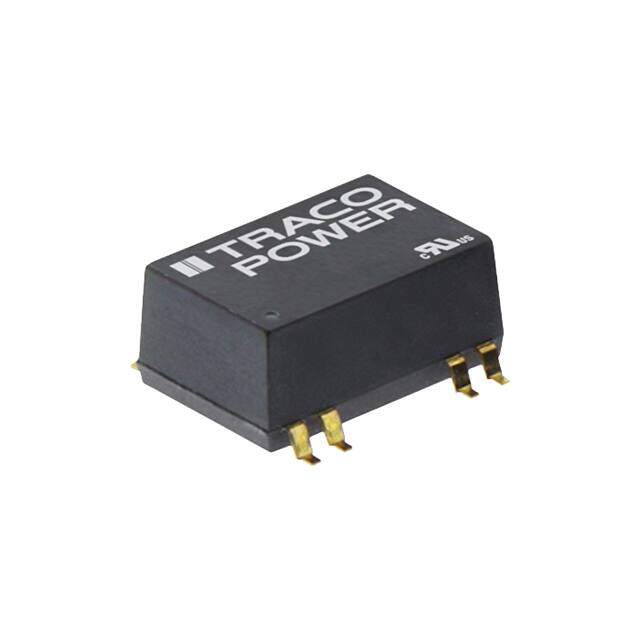

TDR 2-4812SM
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 2W
PDF
/
Buying Options
Total Price: USD $23.94
Unit Price: USD $23.936
≥1 USD $23.936
≥10 USD $22.1276
≥100 USD $21.78176
≥500 USD $20.744592
≥1000 USD $19.01592
≥3000 USD $18.67015
Inventory: 1011
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 9.2mm
Technical
Total Power Output-Max 2W
Current - Output (Max) 167mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PDMA-G7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 0.74Lx0.50W x 0.34 H 18.9mmx12.8mmx8.7mm
Series TDR 2SM (2W)
Published 2013
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 14-SMD Module, 7 Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
