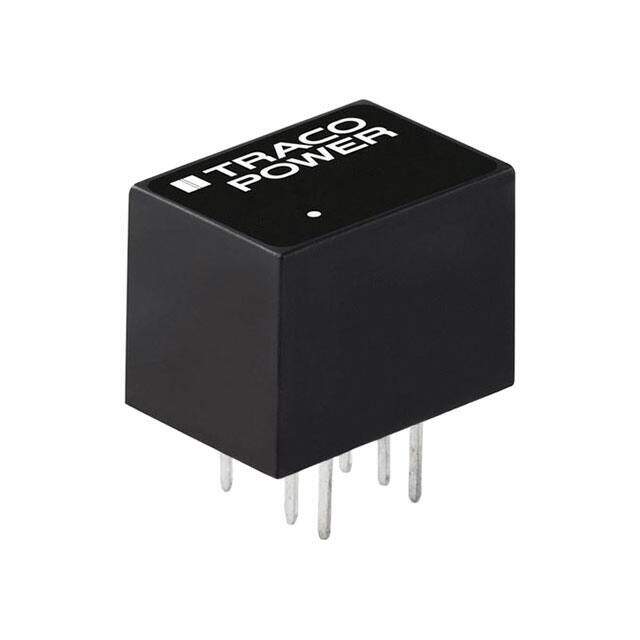

TDN 5-4815WI
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 24V 5W
PDF
/
Buying Options
Total Price: USD $23.01
Unit Price: USD $23.012
≥1 USD $23.012
≥10 USD $22.65384
≥100 USD $22.299904
≥500 USD $21.23792
≥1000 USD $19.468064
≥3000 USD $19.114093
Inventory: 32
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Total Power Output-Max 5W
Current - Output (Max) 210mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 83%
Number of Outputs 1
JESD-30 Code R-PDMA-F6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Technology HYBRID
Power (Watts) 5W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.52Lx0.36W x 0.40 H 13.2mmx9.1mmx10.2mm
Series TDN 5WI (5W)
Published 2015
Operating Temperature -40°C~75°C With Derating
Physical
Surface Mount YES
Package / Case 7-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
