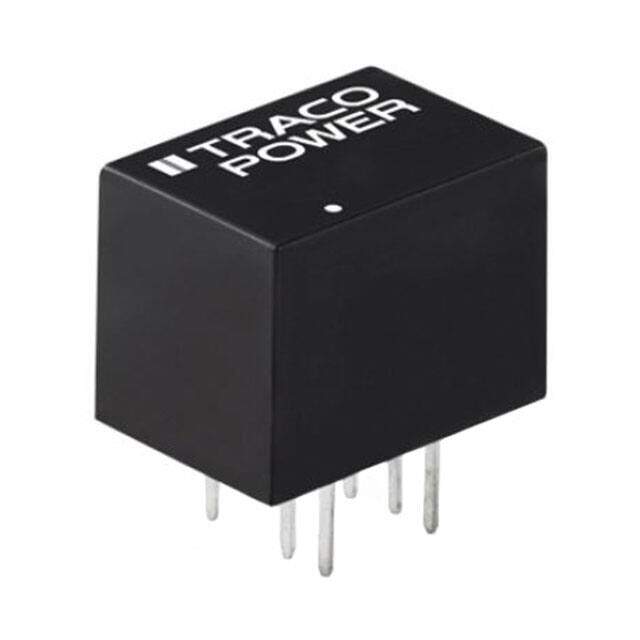

TDN 3-4812WI
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 3W
PDF
/
Inventory: 9513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Total Power Output-Max 3W
Current - Output (Max) 250mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 83%
Number of Outputs 1
JESD-30 Code R-XDMA-T6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.52Lx0.36W x 0.40 H 13.2mmx9.1mmx10.2mm
Series TDN 3WI (3W)
Published 2015
Operating Temperature -40°C~70°C
Physical
Surface Mount NO
Package / Case 7-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
