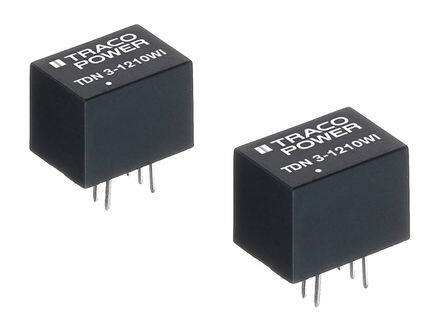

TDN 3-1222WI
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 3W
PDF
/
Buying Options
Total Price: USD $20.68
Unit Price: USD $20.68
≥1 USD $20.68
≥10 USD $20.36408
≥100 USD $20.046048
≥500 USD $19.091424
≥1000 USD $17.500472
≥3000 USD $17.182282
Inventory: 67
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -12V
Current - Output (Max) 125mA 125mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 12V
Voltage - Input (Max) 18V
Voltage - Isolation 1.6kV
Efficiency 82%
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.52Lx0.36W x 0.40 H 13.2mmx9.1mmx10.2mm
Series TDN 3WI (3W)
Published 2015
Operating Temperature -40°C~70°C
Physical
Package / Case 7-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
