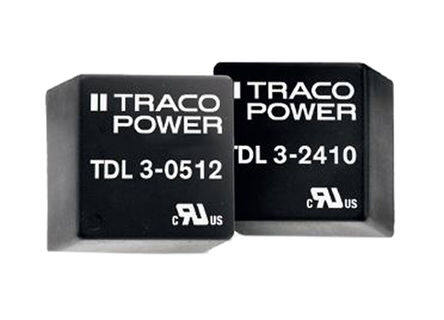

TDL 3-4813
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V 3W
PDF
/
Buying Options
Total Price: USD $46.62
Unit Price: USD $46.6222
≥1 USD $46.6222
≥10 USD $38.25365
≥100 USD $37.05855
≥500 USD $35.8625
≥1000 USD $34.6674
Inventory: 16
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 7-DIP Module, 4 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~70°C
Series TDL 3 (3W)
Size / Dimension 0.55Lx0.55W x 0.31 H 14.0mmx14.0mmx8.0mm
Feature OCP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 3W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-XDMA-P5
Number of Outputs 1
Efficiency 86%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 200mA
Total Power Output-Max 3W
Compliance
RoHS Status ROHS3 Compliant
