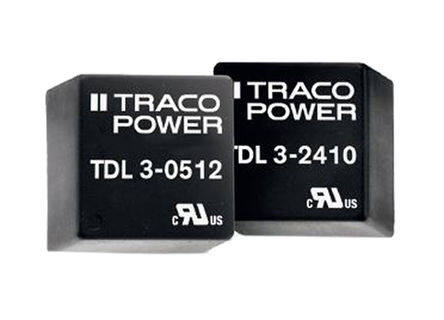

TDL 3-0512
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 3W
PDF
/
Inventory: 8009
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 7-DIP Module, 4 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~70°C
Series TDL 3 (3W)
Size / Dimension 0.55Lx0.55W x 0.31 H 14.0mmx14.0mmx8.0mm
Feature OCP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 3W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-XDMA-P5
Number of Outputs 1
Efficiency 85%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 10V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 250mA
Total Power Output-Max 3W
Compliance
RoHS Status ROHS3 Compliant
