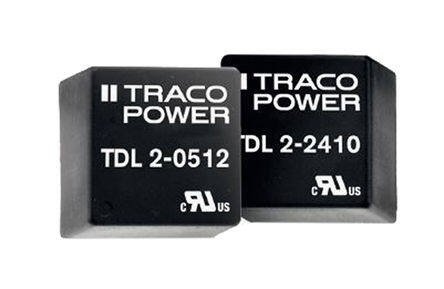

TDL 2-4810
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 1.3W
PDF
/
Inventory: 4711
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output (Max) 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 79%
Number of Outputs 1
JESD-30 Code S-XDMA-P5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 1.3W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
JESD-609 Code e3
Size / Dimension 0.55Lx0.55W x 0.31 H 14.0mmx14.0mmx8.0mm
Series TDL 2 (2W)
Operating Temperature -40°C~70°C
Physical
Surface Mount NO
Package / Case 7-DIP Module, 4 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
