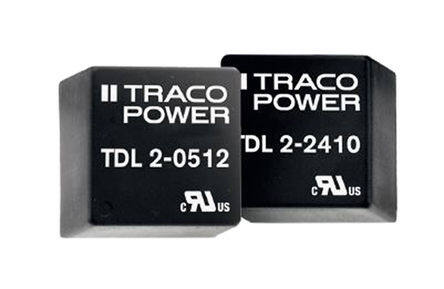

TDL 2-0523
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 2W
PDF
/
Inventory: 3488
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 14mm
Length 14mm
Technical
Total Power Output-Max 2W
Voltage - Output 2 -15V
Current - Output (Max) 67mA 67mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 10V
Voltage - Isolation 1.5kV
Efficiency 85%
Number of Outputs 2
JESD-30 Code S-XDMA-P5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Additional Feature IT ASLO HAS -15 V OUTPUT
Power (Watts) 2W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
JESD-609 Code e3
Size / Dimension 0.55Lx0.55W x 0.31 H 14.0mmx14.0mmx8.0mm
Series TDL 2 (2W)
Operating Temperature -40°C~70°C
Physical
Surface Mount NO
Package / Case 7-DIP Module, 5 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
