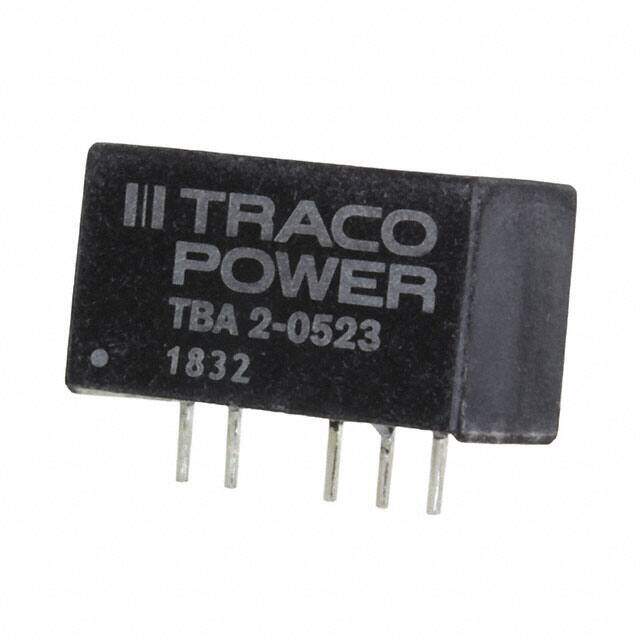

TBA 2-0523
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER +/-15V 2W
PDF
/
Buying Options
Total Price: USD $4.16
Unit Price: USD $4.1624
≥1 USD $4.1624
≥10 USD $4.0436
≥100 USD $3.927616
≥500 USD $3.696704
≥1000 USD $3.58116
≥3000 USD $3.465651
Inventory: 482
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -15V
Current - Output (Max) 65mA 65mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 15V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1.5kV
Efficiency 82%
Number of Outputs 2
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.30W x 0.40 H 19.6mmx7.6mmx10.2mm
Series TBA 2 (2W)
Operating Temperature -40°C~90°C With Derating
Physical
Package / Case 6-SIP Module, 5 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
