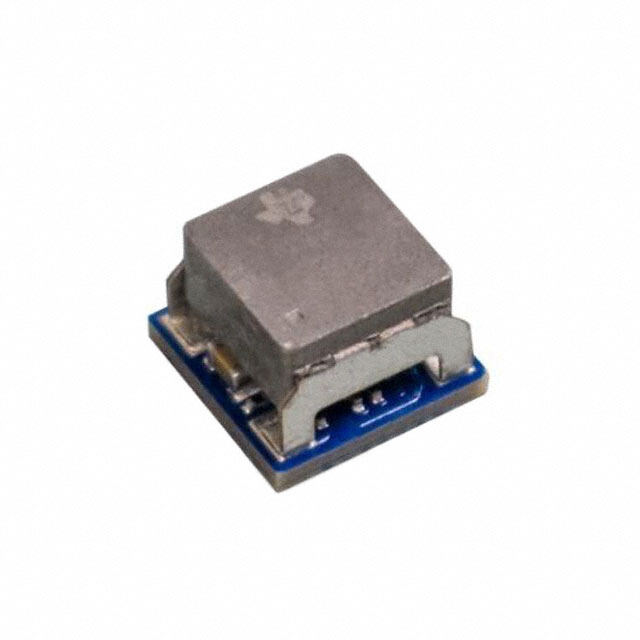

TPSM84624MOLR
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
IC 4.5V-17V INP 0.6V-10V OUTP
PDF
/
Buying Options
Total Price: USD $8.47
Unit Price: USD $8.4656
≥1 USD $8.4656
≥10 USD $7.64368
≥100 USD $7.28816
≥500 USD $6.328256
≥1000 USD $6.04384
Inventory: 1230
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 24-SMD Module
Surface Mount YES
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series TPS
Size / Dimension 0.30Lx0.30W x 0.21 H 7.5mmx7.5mmx5.4mm
Feature OCP, OTP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 24
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power (Watts) 60W
Terminal Position QUAD
Terminal Form BUTT
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TPSM84624
JESD-30 Code S-XQMA-B24
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 17V
Voltage - Output 1 0.6V~10V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Current - Output (Max) 6A
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Dimensions
Height Seated (Max) 5.4mm
Length 7.5mm
Width 7.5mm
Compliance
RoHS Status ROHS3 Compliant
