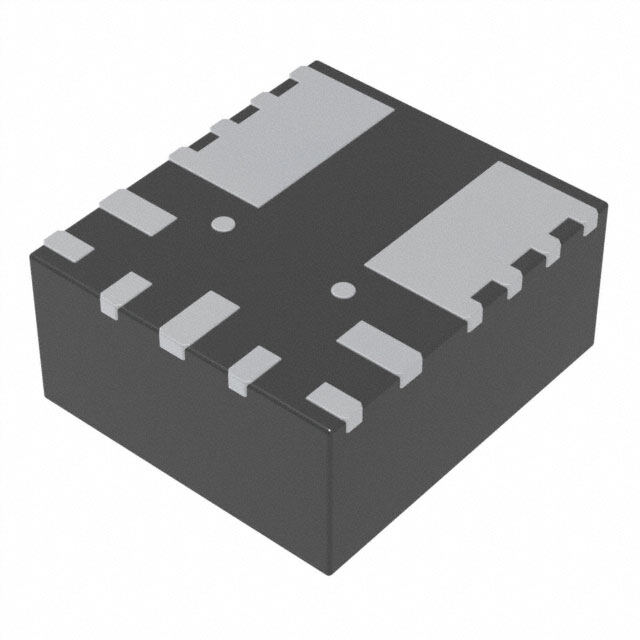

TPSM84209RKHR
RoHS
RoHS compliant
RoHS compliantPackage 9-PowerQFN
Category Power Supplies - Board Mount / DC DC Converters
Description
4.5-V to 28-V input, 1.2-V to 6-V output, 2.5-A power module 9-QFN-FCMOD -40 to 85
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.24721
≥1 USD $2.24721
≥10 USD $2.12001
≥100 USD $2.00001
≥500 USD $1.8868
≥1000 USD $1.78
≥3000 USD $1.67925
Inventory: 5565
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 9-PowerQFN
Surface Mount YES
Technical
Operating Temperature -40°C~85°C With Derating
Packaging Tape & Reel (TR)
Series TPS
Size / Dimension 0.18Lx0.16W x 0.08 H 4.5mmx4.0mmx2.1mm
Feature Adjustable Output, Remote On/Off
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 9
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Terminal Position QUAD
Terminal Form NO LEAD
Number of Functions 1
Reach Compliance Code compliant
Base Part Number TPSM84209
JESD-30 Code R-PQCC-N9
Number of Outputs 1
Efficiency 91.7%
Voltage - Input (Max) 28V
Output Voltage 3.3V
Voltage - Output 1 1.2V~6V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Current - Output (Max) 2.5A
Control Features Enable, Active High
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Switching Frequency-Max 923kHz
