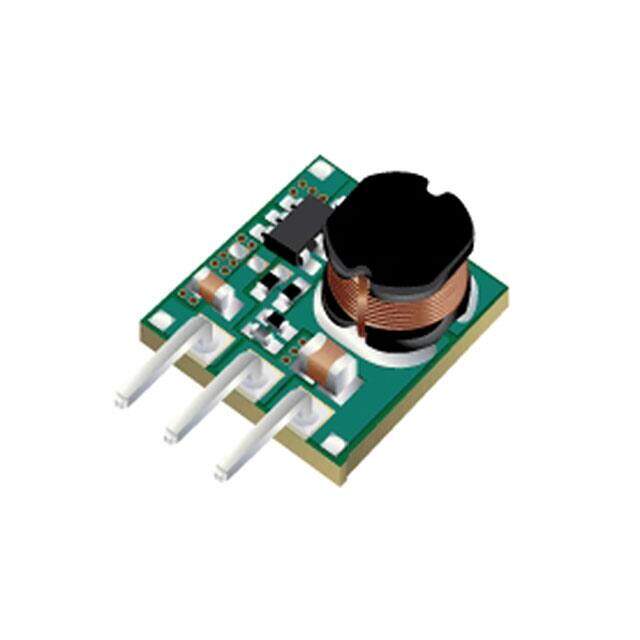

TPSM84203EAB
RoHS
/
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V
PDF
/
Buying Options
Total Price: USD $6.75
Unit Price: USD $6.7496
≥1 USD $6.7496
≥10 USD $6.09576
≥100 USD $5.812224
≥500 USD $5.0468
≥1000 USD $4.81998
≥3000 USD $4.394667
Inventory: 538
Minimum: 1
-
+
Technical Details
Dimensions
Thickness 6.42mm
Height 11mm
Technical
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Output Power 4.95W
Current - Output (Max) 1.5A
Input Voltage-Nom 24V
Voltage - Input (Min) 4.5V
Output Voltage 3.3V
Voltage - Input (Max) 28V
Efficiency 94%
Number of Outputs 1
Base Part Number TPSM84203
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature OCP, OTP, OVP
Size / Dimension 0.40Lx0.31W x 0.44 H 10.1mmx7.8mmx11.1mm
Series TPS
Packaging Tray
Operating Temperature -40°C~85°C With Derating
Physical
Number of Pins 3
Surface Mount NO
Package / Case 3-SIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
