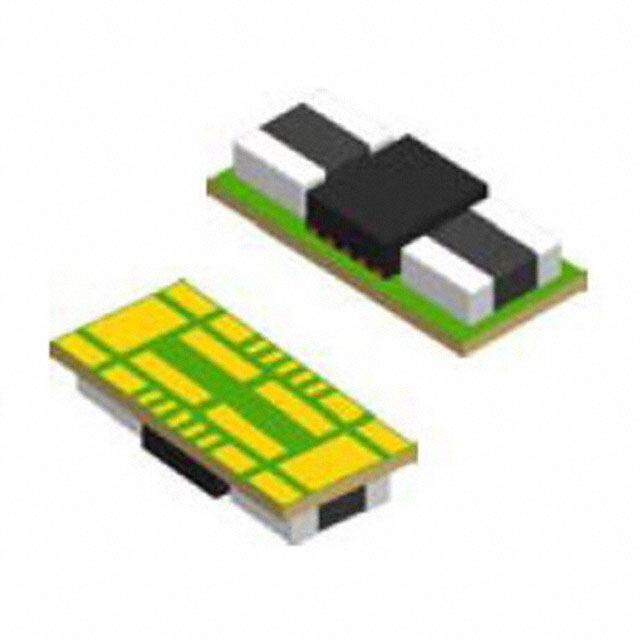

TPSM82480MOPR
RoHS
/
Package 24-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
6A, 5.5V Input Step-Down Power Module with MODE and VSEL option 24-QFM -40 to 125
PDF
/
Buying Options
Total Price: USD $5.56
Unit Price: USD $5.5616
≥1 USD $5.5616
≥10 USD $4.9984
≥100 USD $4.7256
≥500 USD $4.095432
≥1000 USD $3.885446
≥3000 USD $3.486384
Inventory: 3841
Minimum: 1
-
+
Technical Details
Dimensions
Width 3.6mm
Length 7.9mm
Technical
Switching Frequency-Max 3000kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Current - Output (Max) 6A
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.4V
Voltage - Output 1 0.6V~5.5V
Voltage - Input (Max) 5.5V
Number of Outputs 1
JESD-30 Code R-PXMA-B24
Base Part Number TPSM82480
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BUTT
Terminal Position UNSPECIFIED
Applications ITE (Commercial)
Type Non-Isolated PoL Module
Number of Terminations 24
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Feature OCP, OTP, SCP, UVLO
Size / Dimension 0.31Lx0.14W x 0.06 H 7.9mmx3.6mmx1.6mm
Series TPS
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Surface Mount YES
Package / Case 24-SMD Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
