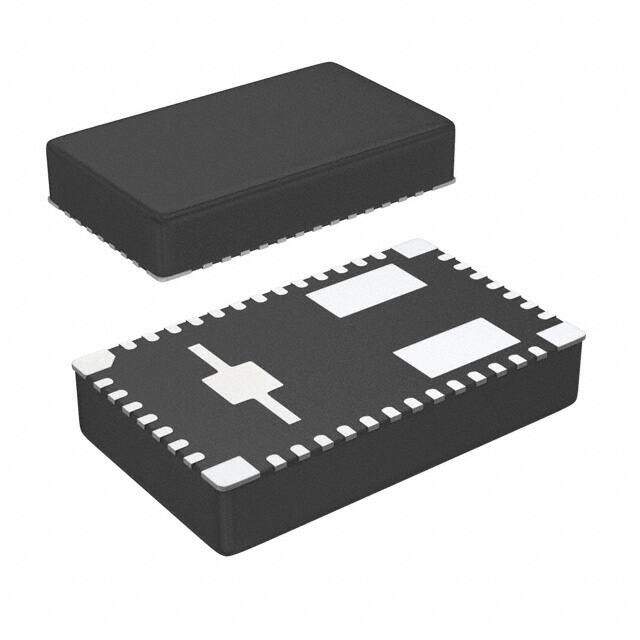

TPS84620RUQT
RoHS
RoHS compliant
RoHS compliantPackage 47-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Switching Voltage Regulators 4.5V-14.5Vin,6A Syn Buck,Int Pwr Sol
PDF
/
Buying Options
Total Price: USD $10.3
Unit Price: USD $10.3048
≥1 USD $10.3048
≥10 USD $10.22736
≥100 USD $10.14904
≥500 USD $9.992928
≥1000 USD $9.680704
≥3000 USD $8.743856
Inventory: 513
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 47-BQFN Module
Number of Pins 47
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Size / Dimension 0.59Lx0.35W x 0.11 H 15.0mmx9.0mmx2.8mm
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 47
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 33W
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Terminal Pitch 0.9mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TPS84620
Pin Count 47
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 90%
Voltage - Input (Max) 14.5V
Output Voltage 3.6V
Output Type Adjustable
Max Output Current 6A
Voltage - Output 1 1.2V~5.5V
Input Voltage-Nom 12V
Min Supply Voltage 4.5V
Output Current 6A
Control Features Enable, Active High
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Switching Frequency 600kHz
Dimensions
Height 2.9mm
Thickness 2.8mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
