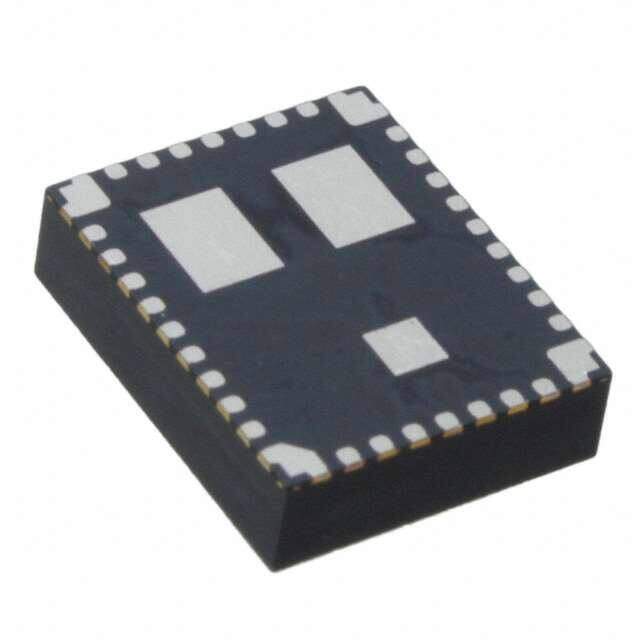

TPS84610RKGR image
Favorite
TPS84610RKGR image
Favorite

TPS84610RKGR

Texas Instruments
RoHS
RoHS RoHS compliant
Package 39-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description IC BUCK SYNC ADJ 6A 39B1QFN
PDF
/
Buying Options
Total Price: USD $4.45
Unit Price: USD $4.4528
≥1 USD $4.4528
≥10 USD $4.38416
≥100 USD $4.32168
≥500 USD $4.19408
≥1000 USD $4.067184
≥3000 USD $3.940024
Inventory: 971
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Thickness 2.8mm
Height 2.9mm

Technical

Switching Frequency 2MHz
Switcher Configuration BUCK
Control Features Enable, Active High
Output Current 6A
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.8V~3.6V
Max Output Current 6A
Output Voltage 3.6V
Voltage - Input (Max) 6V
Efficiency 96%
Number of Outputs 1
Pin Count 39
Base Part Number TPS84610
Terminal Pitch 0.9mm
Number of Functions 1
Peak Reflow Temperature (Cel) 250
Terminal Position QUAD
Max Power Dissipation 22W
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 39
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature UVLO
JESD-609 Code e4
Size / Dimension 0.43Lx0.35W x 0.11 H 11.0mmx9.0mmx2.8mm
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Number of Pins 39
Package / Case 39-BQFN Module
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 8 Weeks
