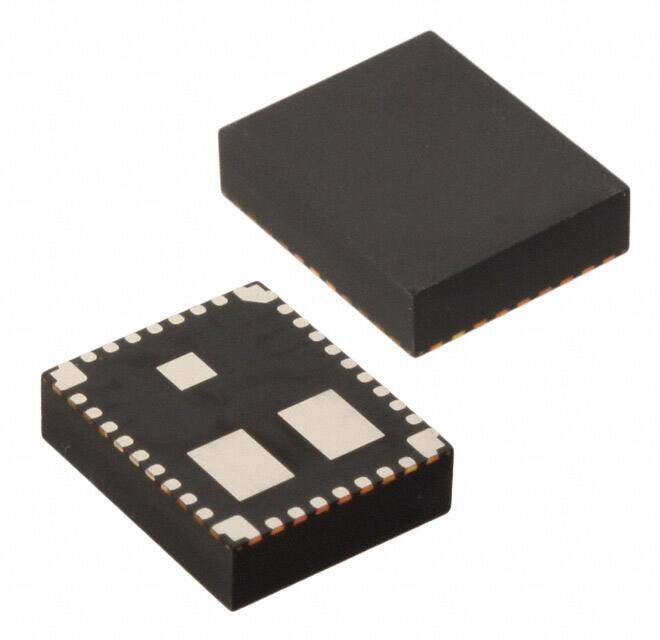

TPS84410RKGR
RoHS
RoHS compliant
RoHS compliantPackage 39-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
IC BUCK SYNC ADJ 4A 39B1QFN
PDF
/
Buying Options
Total Price: USD $4.51
Unit Price: USD $4.5144
≥1 USD $4.5144
≥10 USD $4.44576
≥100 USD $4.38152
≥500 USD $4.252864
≥1000 USD $4.124032
≥3000 USD $3.9952
Inventory: 1109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 39-BQFN Module
Number of Pins 39
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Size / Dimension 0.43Lx0.35W x 0.11 H 11.0mmx9.0mmx2.8mm
JESD-609 Code e4
Feature UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 39
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 14.4W
Terminal Position QUAD
Peak Reflow Temperature (Cel) 250
Number of Functions 1
Terminal Pitch 0.9mm
Base Part Number TPS84410
Pin Count 39
Number of Outputs 1
Efficiency 96%
Voltage - Input (Max) 6V
Output Voltage 3.6V
Max Output Current 4A
Voltage - Output 1 0.8V~3.6V
Voltage - Input (Min) 2.95V
Input Voltage-Nom 3.3V
Output Current 4A
Control Features Enable, Active High
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Switching Frequency 500kHz
Dimensions
Height 2.9mm
Thickness 2.8mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
