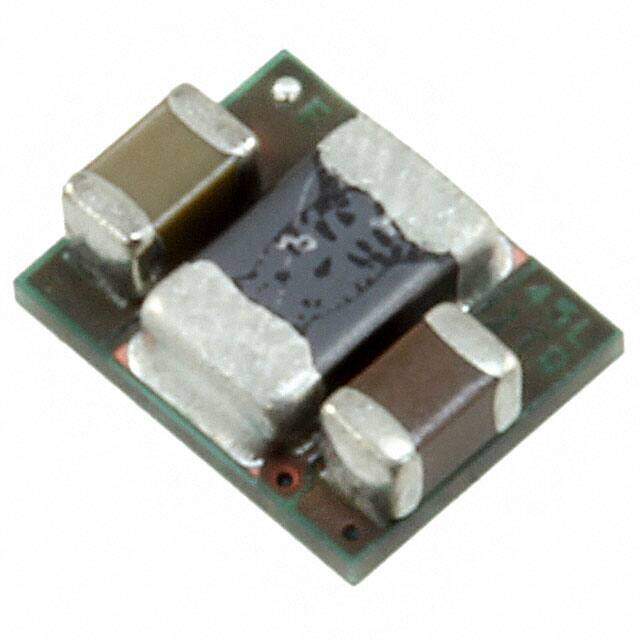

TPS82740BSIPT image
Favorite
TPS82740BSIPT image
Favorite

TPS82740BSIPT

Texas Instruments
RoHS
RoHS RoHS compliant
Package 9-TBGA Module
Category Power Supplies - Board Mount / DC DC Converters
Description TEXAS INSTRUMENTS TPS82740BSIPTNon Isolated POL DC/DC Converter, Micro SIP, 2.6 V, 3.3 V, 200 mA
PDF
/
Buying Options
Total Price: USD $2.96
Unit Price: USD $2.9568
≥1 USD $2.9568
≥10 USD $2.65232
≥100 USD $2.507648
≥500 USD $2.173424
Inventory: 1120
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 2.3mm
Height 1.016mm

Technical

Switching Frequency 2MHz
Min Input Voltage (DC) 2.2V
Max Input Voltage (DC) 5.5V
Switcher Configuration BUCK
Min Output Voltage 2.6V
Control Technique PULSE WIDTH MODULATION
Max Output Voltage 3.3V
Quiescent Current 360nA
Current - Output (Max) 200mA
Input Voltage-Nom 3.6V
Operating Supply Voltage 5.5V
Voltage - Output 1 2.6V~3.3V
Max Output Current 200mA
Output Voltage 3.3V
Efficiency 90%
Number of Outputs 1
Base Part Number TPS82740
Depth 2.95mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Applications ITE (Commercial)
Type Non-Isolated PoL Module
Number of Terminations 9
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, UVLO
Size / Dimension 0.12Lx0.09W x 0.04 H 3.0mmx2.4mmx1.0mm
Series MicroSip?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Number of Pins 9
Package / Case 9-TBGA Module
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 12 Weeks
