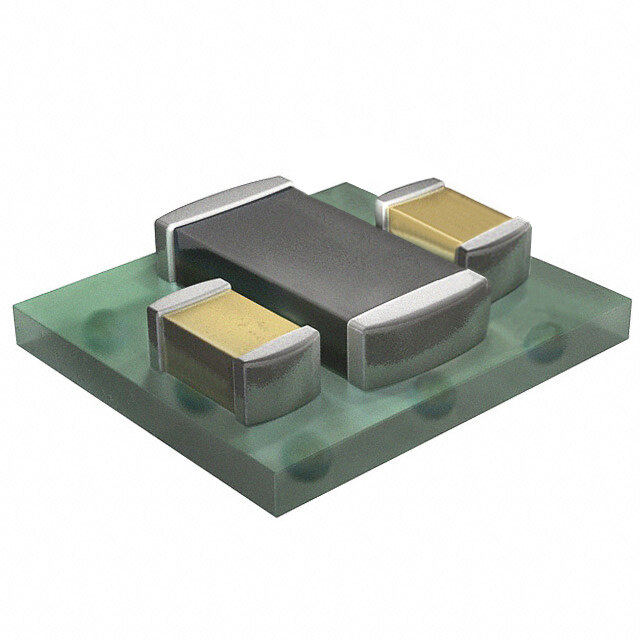

TPS826765SIPT
RoHS
RoHS compliant
RoHS compliantPackage 8-BGA Module
Category Power Supplies - Board Mount / DC DC Converters
Description
IC REG BCK SYNC 1.05V 0.6A 8USIP
PDF
/
Buying Options
Total Price: USD $2.57
Unit Price: USD $2.5696
≥1 USD $2.5696
≥10 USD $2.31
≥100 USD $2.183808
≥500 USD $1.892616
Inventory: 801
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 950μm
Width 2.3mm
Height 1mm
Technical
Switching Frequency 5.45MHz
Max Output Power 630mW
Switcher Configuration BUCK
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Control Mode VOLTAGE-MODE
Control Features Enable, Active High
Output Current 600mA
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.3V
Max Output Current 600mA
Output Type Fixed
Output Voltage 1.05V
Voltage - Input (Max) 4.8V
Efficiency 90%
Number of Outputs 1
Base Part Number TPS826765
Depth 2.9mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Additional Feature ALSO OPERATES IN PFM CONTROL TECHNIQUE
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 0.12Lx0.09W x 0.04 H 3.0mmx2.4mmx1.0mm
Series MicroSip?
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Package / Case 8-BGA Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 12 Weeks
