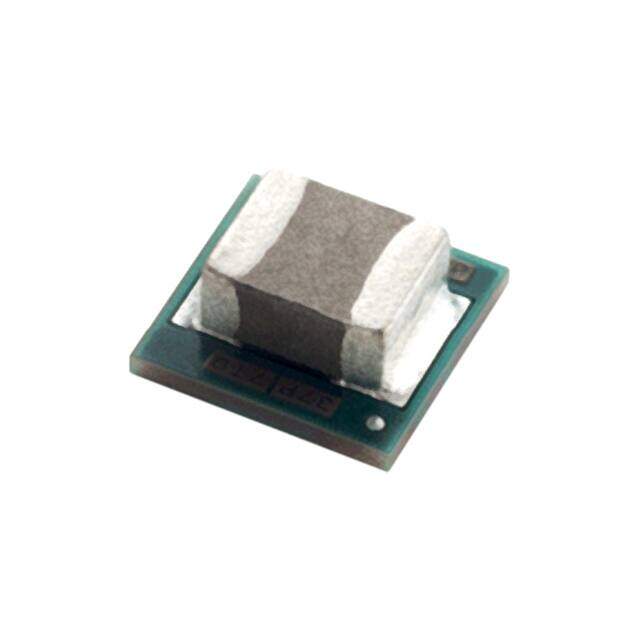

TPS82150SILT
RoHS
RoHS compliant
RoHS compliantPackage 8-LDFN Exposed Pad, Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-6V
PDF
/
Buying Options
Total Price: USD $4.14
Unit Price: USD $4.1448
≥1 USD $4.1448
≥10 USD $3.71888
≥100 USD $3.515776
≥500 USD $3.046912
Inventory: 1976
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1.53mm
Technical
Switching Frequency 2MHz
Max Junction Temperature (Tj) 110°C
Max Duty Cycle 100 %
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Control Mode VOLTAGE-MODE
Output Current 1A
Nominal Supply Current 20μA
Min Supply Voltage 3V
Max Supply Voltage 17V
Input Voltage-Nom 12V
Voltage - Input (Min) 3V
Voltage - Output 1 0.9V~6V
Output Voltage 6V
Number of Outputs 1
Base Part Number TPS82150
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Technology HYBRID
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Feature OTP
Size / Dimension 0.12Lx0.11W x 0.06 H 3.0mmx2.8mmx1.5mm
Series MicroSip?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C With Derating
Physical
Number of Pins 8
Surface Mount NO
Package / Case 8-LDFN Exposed Pad, Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 12 Weeks
