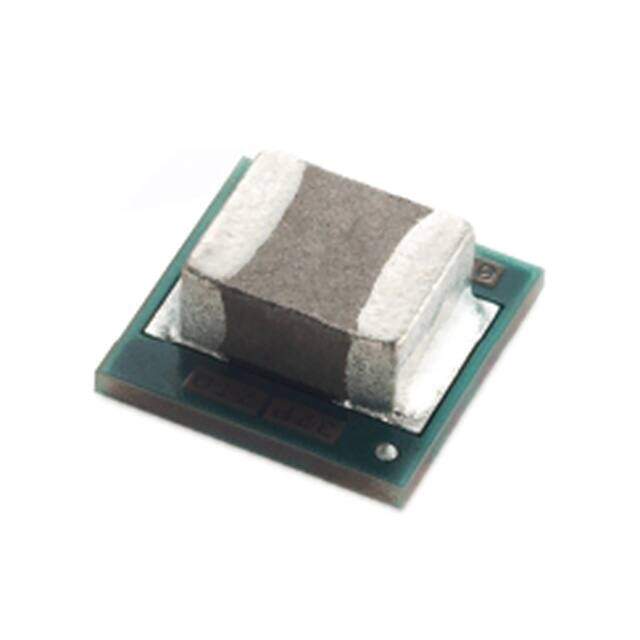

TPS82140SILR
RoHS
RoHS compliant
RoHS compliantPackage 8-LDFN Exposed Pad, Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-6V
PDF
/
Buying Options
Total Price: USD $3.61
Unit Price: USD $3.608
≥1 USD $3.608
≥10 USD $3.23664
≥100 USD $3.059584
≥500 USD $2.651704
≥1000 USD $2.515744
≥3000 USD $2.257376
Inventory: 7038
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mounting Type Surface Mount
Package / Case 8-LDFN Exposed Pad, Module
Surface Mount YES
Number of Pins 8
Technical
Operating Temperature -40°C~125°C With Derating
Packaging Tape & Reel (TR)
Series MicroSip?
Size / Dimension 0.12Lx0.11W x 0.06 H 3.0mmx2.8mmx1.5mm
Feature OTP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature OPERATES WITH THE ADJ OUTPUT VOLTAGE FROM 0.9V TO 6V
Terminal Position DUAL
Terminal Form BUTT
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TPS82140
Number of Outputs 1
Output Voltage 6V
Voltage - Output 1 0.9V~6V
Voltage - Input (Min) 3V
Input Voltage-Nom 12V
Max Supply Voltage 17V
Min Supply Voltage 3V
Nominal Supply Current 20μA
Output Current 2A
Control Features Enable, Active High
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Max Duty Cycle 100 %
Max Junction Temperature (Tj) 110°C
Switching Frequency 2MHz
Dimensions
Height 1.53mm
Compliance
RoHS Status ROHS3 Compliant
