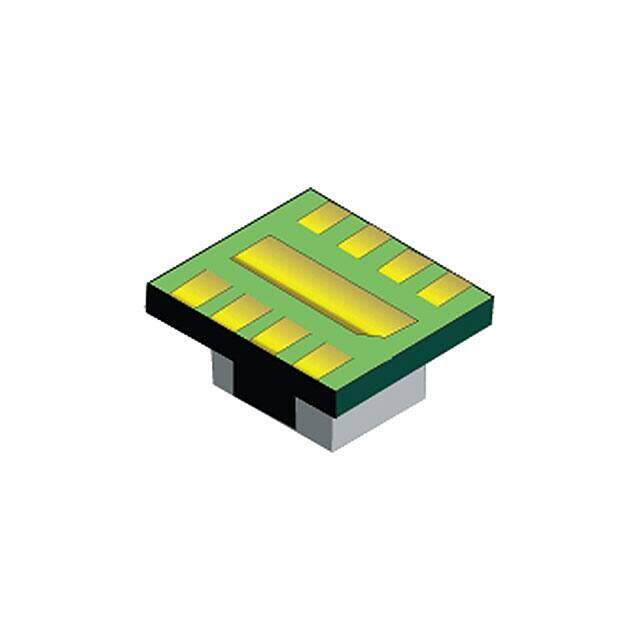

TPS82085SILT
RoHS
RoHS compliant
RoHS compliantPackage 8-LDFN Exposed Pad, Module
Category Power Supplies - Board Mount / DC DC Converters
Description
IC REG BUCK ADJ 3A SYNC 8USIP
PDF
/
Buying Options
Total Price: USD $3.82
Unit Price: USD $3.8192
≥1 USD $3.8192
≥10 USD $3.20408
≥100 USD $2.591776
Inventory: 1865
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-LDFN Exposed Pad, Module
Number of Pins 8
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Series MicroSip?
Size / Dimension 0.12Lx0.11W x 0.05 H 3.0mmx2.8mmx1.3mm
Feature Adjustable Output
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Terminal Position DUAL
Terminal Form BUTT
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TPS82085
Number of Outputs 1
Efficiency 95%
Output Voltage 6V
Output Type Adjustable
Max Output Current 3A
Voltage - Output 1 0.8V~6V
Operating Supply Voltage 6V
Input Voltage-Nom 3.6V
Max Supply Voltage 6V
Min Supply Voltage 2.5V
Nominal Supply Current 17μA
Output Configuration Positive
Output Current 3A
Quiescent Current 17μA
Max Output Voltage 6V
Control Mode CURRENT/VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 800mV
Switcher Configuration BUCK
Max Duty Cycle 100 %
Switching Frequency 2.4MHz
Dimensions
Height 1.33mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
