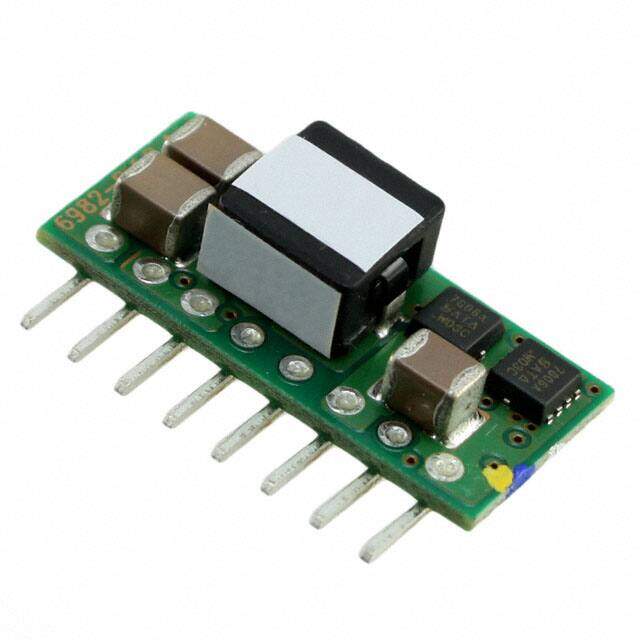

PTV12010LAH

Texas Instruments
RoHS
RoHS RoHS compliant
Package 8-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 12VIN 1-OUT 0.8V to 1.8V 8A 8-Pin SIP Module
PDF
/
Buying Options
Total Price: USD $15.99
Unit Price: USD $15.98945
≥1 USD $15.98945
≥10 USD $13.1195
≥100 USD $12.7091
≥500 USD $12.29965
≥1000 USD $11.88925
Inventory: 1113
Minimum: 1
-
+

Technical Details

Technical

JESD-609 Code e3
Feature UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Max Power Dissipation 14.4W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Number of Functions 1
Depth 8.13mm
Base Part Number TV12010
Pin Count 8
Number of Outputs 1
Approval Agency "UL,IEC,CSA"
Efficiency 87%
Voltage - Input (Max) 13.2V
Output Voltage 1.8V
Max Output Current 8A
Voltage - Output 1 0.8V~1.8V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 8A
Output Power 14.4W
Max Output Voltage 1.8V
Protections OUTPUT OVER CURRENT;THERMAL
Size / Dimension 0.90Lx0.33W x 0.40 H 22.9mmx8.4mmx10.2mm
Series PTV12010
Packaging Tray
Operating Temperature -40°C~85°C
Control Mode VOLTAGE
Current - Output 1 8A
Min Output Voltage 800mV
Switching Frequency-Max 400kHz
Isolation Non-Isolated

Physical

Number of Pins 8
Surface Mount NO
Package / Case 8-SIP Module
Mounting Type Through Hole

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks

Dimensions

Height 10.4mm
Thickness 10.15mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
