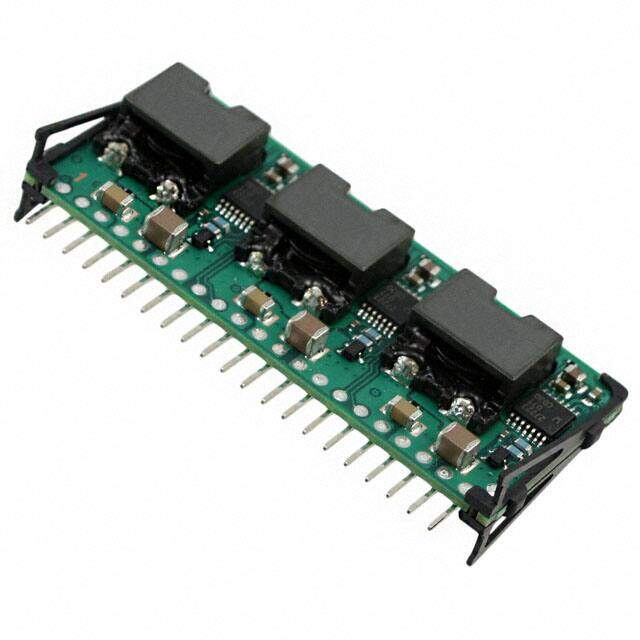

PTV08T250WAD
RoHS
RoHS compliant
RoHS compliantPackage 21-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-3.6V 50A
PDF
/
Buying Options
Total Price: USD $77.48
Unit Price: USD $77.4752
≥1 USD $77.4752
≥10 USD $76.85744
≥100 USD $76.242778
≥500 USD $68.8644
≥1000 USD $65.421189
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 21-DIP Module
Surface Mount NO
Number of Pins 21
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTV08T250W
Size / Dimension 2.36Lx0.37W x 0.95 H 59.9mmx9.4mmx24.1mm
JESD-609 Code e3
Feature UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 21
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
HTS Code 8504.40.95.80
Max Power Dissipation 180W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Number of Functions 1
Depth 9.39mm
Base Part Number TV08T250
Number of Outputs 1
Efficiency 95%
Output Voltage 3.6V
Max Output Current 50A
Voltage - Output 1 0.8V~3.6V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 50A
Output Power 180W
Max Output Voltage 3.6V
Current - Output 1 50A
Min Output Voltage 800mV
Max Output Power 180W
Isolation Non-Isolated
Max Input Voltage (DC) 14V
Min Input Voltage (DC) 8V
Dimensions
Height 24.38mm
Thickness 24.13mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
