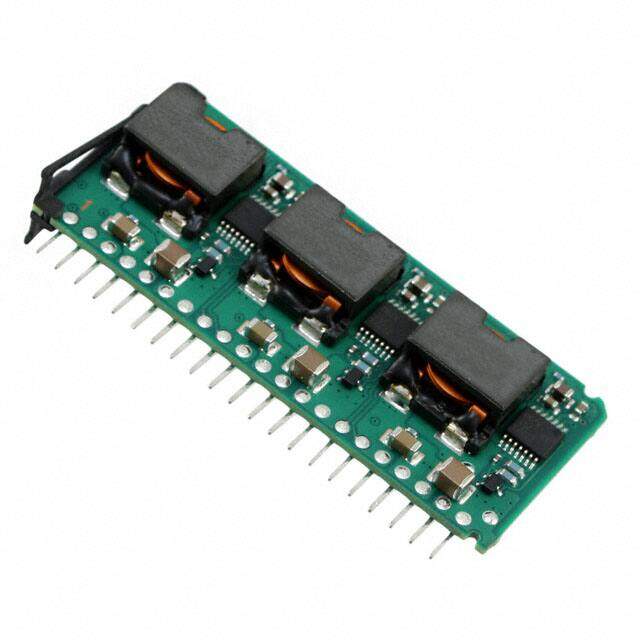

PTV08040WAH
RoHS
RoHS compliant
RoHS compliantPackage 21-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-3.6V 50A
PDF
/
Buying Options
Total Price: USD $5.34
Unit Price: USD $5.3428
≥1 USD $5.3428
≥10 USD $4.38425
≥100 USD $4.24745
≥500 USD $4.1097
≥1000 USD $3.9729
Inventory: 5010
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case 21-DIP Module
Surface Mount NO
Number of Pins 21
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTV08040W
Size / Dimension 2.36Lx0.37W x 0.95 H 59.9mmx9.4mmx24.1mm
JESD-609 Code e3
Feature UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 21
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish TIN
Applications ITE (Commercial)
HTS Code 8504.40.95.80
Max Power Dissipation 180W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 9.39mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TV08040
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 95%
Voltage - Input (Max) 14V
Output Voltage 3.6V
Max Output Current 50A
Voltage - Output 1 0.8V~3.6V
Voltage - Input (Min) 8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 50A
Max Output Voltage 3.6V
Current - Output 1 50A
Min Output Voltage 800mV
Isolation Non-Isolated
Dimensions
Height 24.13mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
