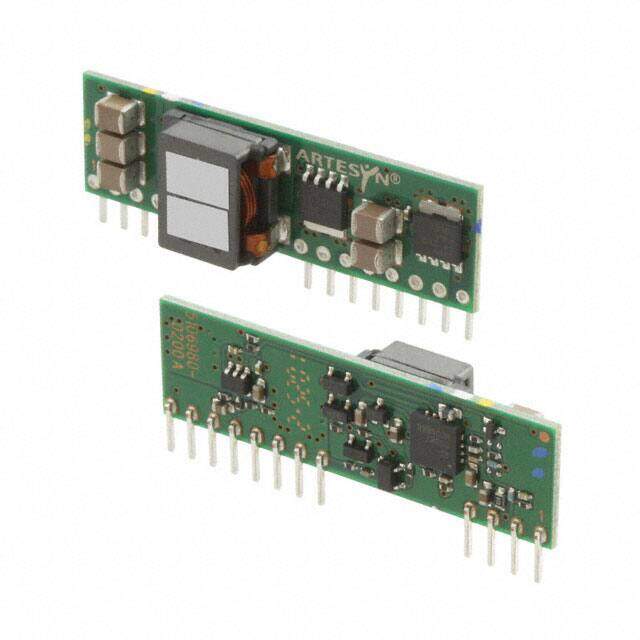

PTV03020WAH
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-2.5V 18A
PDF
/
Buying Options
Total Price: USD $27.65
Unit Price: USD $27.64975
≥1 USD $27.64975
≥10 USD $22.68695
≥100 USD $21.97825
≥500 USD $21.2686
≥1000 USD $20.5599
Inventory: 34
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mounting Type Through Hole
Package / Case 12-SIP Module
Surface Mount NO
Number of Pins 12
Weight 5.5g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTV03020W
Size / Dimension 1.75Lx0.37W x 0.50 H 44.5mmx9.4mmx12.7mm
JESD-609 Code e3
Feature UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
HTS Code 8504.40.95.80
Max Power Dissipation 45W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Number of Functions 1
Depth 8.64mm
Base Part Number TV03020
Pin Count 12
Number of Outputs 1
Efficiency 95%
Voltage - Input (Max) 3.65V
Output Voltage 2.5V
Max Output Current 18A
Voltage - Output 1 0.8V~2.5V
Voltage - Input (Min) 2.95V
Input Voltage-Nom 3.3V
Trim/Adjustable Output YES
Output Current 18A
Output Power 45W
Max Output Voltage 2.5V
Current - Output 1 18A
Min Output Voltage 800mV
Isolation Non-Isolated
Dimensions
Height 12.95mm
Thickness 12.7mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
