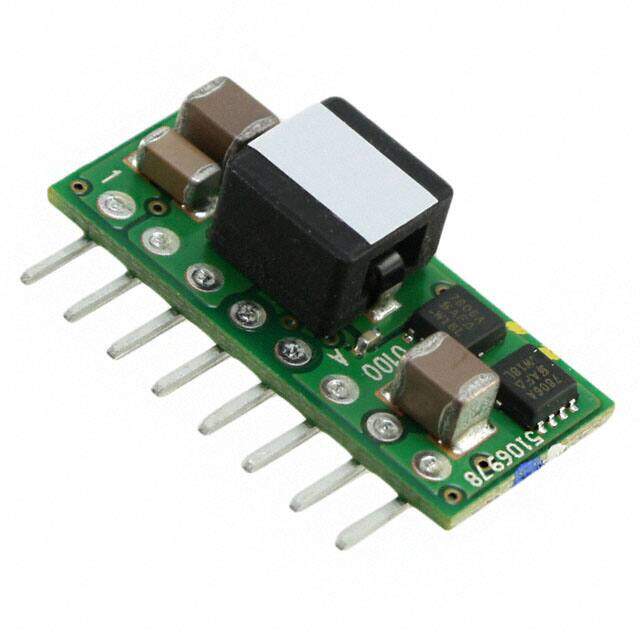

PTV03010WAH
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-2.5V 8A
PDF
/
Buying Options
Total Price: USD $14.36
Unit Price: USD $14.3616
≥1 USD $14.3616
≥10 USD $14.24896
≥100 USD $14.13984
≥500 USD $13.922304
≥1000 USD $13.487135
≥3000 USD $12.181902
Inventory: 58
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 10.15mm
Height 10.4mm
Technical
Min Input Voltage (DC) 2.95V
Max Input Voltage (DC) 3.65V
Isolation Non-Isolated
Max Output Power 20W
Min Output Voltage 800mV
Current - Output 1 8A
Max Output Voltage 2.5V
Output Power 20W
Output Current 8A
Min Supply Voltage 2.95V
Max Supply Voltage 3.65V
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Output 1 0.8V~2.5V
Max Output Current 8A
Output Voltage 2.5V
Efficiency 93%
Number of Outputs 1
Pin Count 8
Base Part Number TV03010
Frequency 600kHz
Depth 8.13mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 20W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Termination Through Hole
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature UVLO
JESD-609 Code e3
Size / Dimension 0.90Lx0.33W x 0.40 H 22.9mmx8.4mmx10.2mm
Series PTV03010W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 2.5g
Number of Pins 8
Surface Mount NO
Package / Case 8-SIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks
