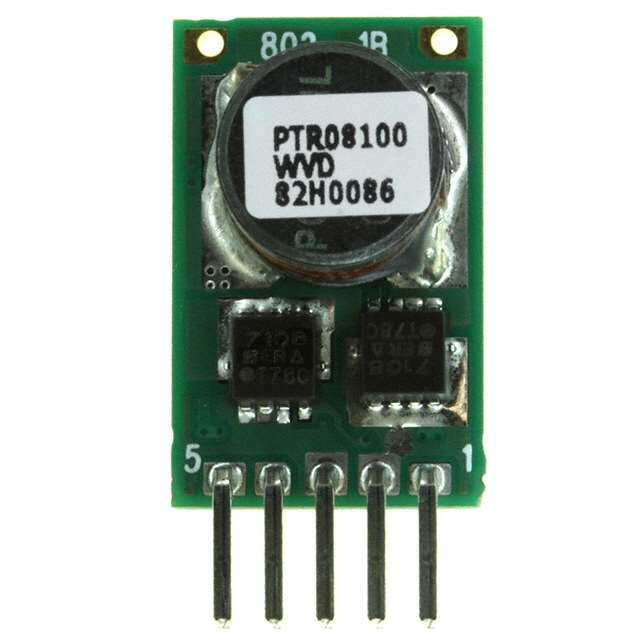

PTR08100WVD
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.6V to 5.5V 10A 5-Pin SIP Module Tray
PDF
/
Buying Options
Total Price: USD $12.79
Unit Price: USD $12.7864
≥1 USD $12.7864
≥10 USD $12.69312
≥100 USD $12.59544
≥500 USD $12.402016
≥1000 USD $12.01442
≥3000 USD $10.85172
Inventory: 246
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 11.5mm
Height 16.64mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 14V
Isolation Non-Isolated
Max Output Power 55W
Switcher Configuration SINGLE
Min Output Voltage 600mV
Current - Output 1 10A
Control Technique RESONANT CONTROL
Control Mode VOLTAGE-MODE
Max Output Voltage 5.5V
Output Power 55W
Output Current 10A
Input Voltage-Nom 12V
Voltage - Output 1 0.6V~5.5V
Max Output Current 10A
Output Voltage 5.5V
Efficiency 95%
Number of Outputs 1
Pin Count 5
Base Part Number PTR08100
Frequency 300kHz
Depth 11.5mm
Number of Functions 1
Terminal Position SINGLE
Max Power Dissipation 55W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature UVLO
JESD-609 Code e3
Size / Dimension 0.41Lx0.45W x 0.65 H 10.4mmx11.4mmx16.5mm
Series PTR08100W
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Surface Mount NO
Package / Case 5-SIP Module
Mounting Type Through Hole
