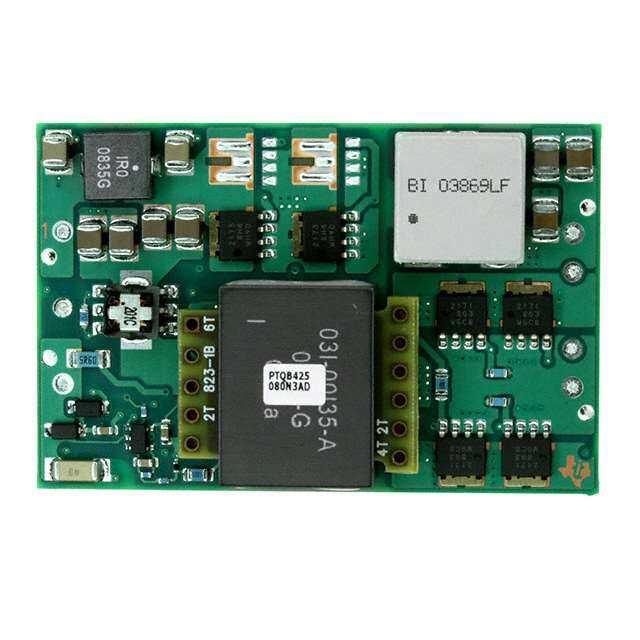

PTQB425080P3AD image
Favorite
PTQB425080P3AD image
Favorite

PTQB425080P3AD

Texas Instruments
RoHS
RoHS RoHS compliant
Package 7-DIP Module, 1/4 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 8V 200W
PDF
/
Inventory: 7371
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height 12.954mm

Technical

Min Output Voltage 5.1V
Current - Output 1 25A
Max Output Voltage 10.5V
Output Power 200W
Output Current 25A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 8V
Max Output Current 25A
Output Voltage 10.5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 93%
Number of Outputs 1
Pin Count 7
Base Part Number TQB425080
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 200W
Applications ITE (Commercial)
Terminal Finish TIN
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 2.22Lx1.45W x 0.51 H 56.4mmx36.8mmx13.0mm
Series PTQB425080 (200W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 7
Surface Mount NO
Package / Case 7-DIP Module, 1/4 Brick
Mounting Type Through Hole
