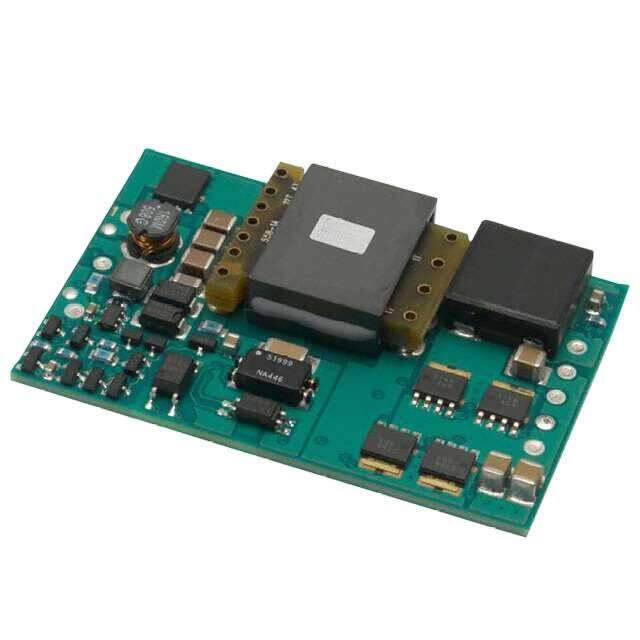

PTQA430033N2AD
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 1/4 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC-DC 48VIN 30A 3.3V 8-DIP
PDF
/
Buying Options
Total Price: USD $573.03
Unit Price: USD $573.031035
≥1 USD $573.031035
≥10 USD $540.59531
≥100 USD $509.995577
≥500 USD $481.127904
≥1000 USD $453.894245
Inventory: 3616
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Thickness 11.75mm
Length 56.39mm
Height 12mm
Technical
Isolation Isolated
Min Output Voltage 2.64V
Current - Output 1 30A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;OUTPUT OVER VOLTAGE;THERMAL
Max Output Voltage 3.63V
Output Power 100W
Output Current 30A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 30A
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 92%
Approval Agency UL
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 8
Base Part Number TQA430033
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 36.83mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 100W
Power Rating 100W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Feature UVLO
JESD-609 Code e3
Size / Dimension 2.22Lx1.45W x 0.47 H 56.4mmx36.8mmx12.0mm
Series PTQA430033 (100W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 30g
Number of Pins 8
Surface Mount NO
Package / Case 8-DIP Module, 1/4 Brick
Mounting Type Through Hole
Supply Chain
Lifecycle Status NRND (Last Updated: 3 days ago)
