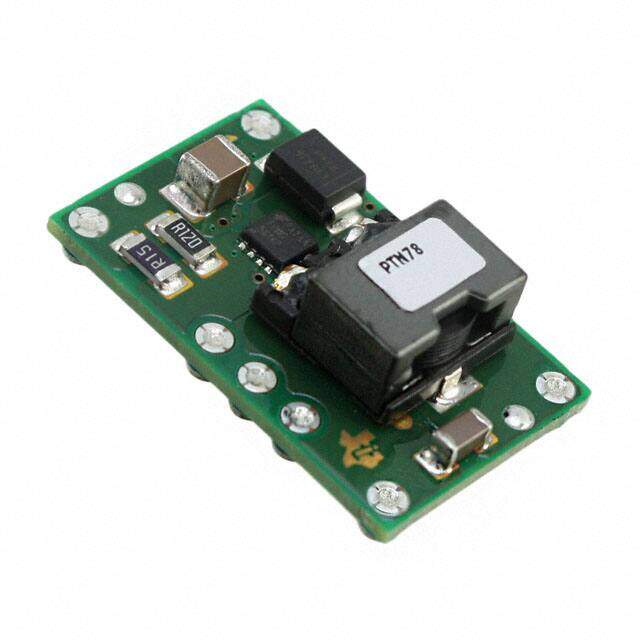

PTN78060WAST
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG SW WIDE-VIN 3A ADJ HORZ SMD
PDF
/
Buying Options
Total Price: USD $29
Unit Price: USD $28.9959
≥1 USD $28.9959
≥10 USD $23.7918
≥100 USD $23.04795
≥500 USD $22.30505
≥1000 USD $21.5612
Inventory: 3321
Minimum: 1
-
+
Technical Details
Physical
Number of Pins 7
Surface Mount NO
Package / Case 7-SMD Module
Mounting Type Surface Mount
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTN78060W
Size / Dimension 1.00Lx0.62W x 0.38 H 25.4mmx15.7mmx9.7mm
JESD-609 Code e0
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Lead (Sn/Pb)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 38W
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 15.75mm
Base Part Number PTN78060
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 36V
Output Voltage 12.6V
Max Output Current 3A
Voltage - Output 1 2.5V~12.6V
Voltage - Input (Min) 7V
Input Voltage-Nom 20V
Output Current 3A
Output Power 45W
Max Output Voltage 12.6V
Current - Output 1 3A
Min Output Voltage 2.5V
Switcher Configuration BUCK
Switching Frequency-Max 660kHz
Isolation Non-Isolated
