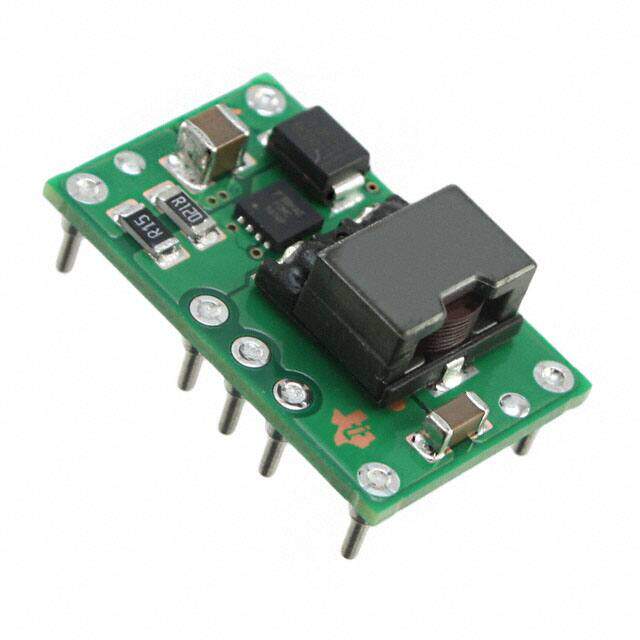

PTN78060WAD
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 2.5V to 12.6V 3A 7-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $17.77
Unit Price: USD $17.7672
≥1 USD $17.7672
≥10 USD $17.6264
≥100 USD $17.49
≥500 USD $17.216954
≥1000 USD $16.39697
≥3000 USD $15.030646
Inventory: 994
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 8.75mm
Height 9mm
Technical
Min Input Voltage (DC) 7V
Max Input Voltage (DC) 36V
Isolation Non-Isolated
Max Output Power 45W
Switcher Configuration BUCK
Min Output Voltage 2.5V
Current - Output 1 3A
Control Technique PULSE WIDTH MODULATION
Max Output Voltage 12.6V
Output Power 45W
Output Current 3A
Input Voltage-Nom 20V
Voltage - Output 1 2.5V~12.6V
Max Output Current 3A
Output Voltage 12.6V
Efficiency 94%
Number of Outputs 1
Pin Count 7
Base Part Number PTN78060
Frequency 550kHz
Depth 15.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 38W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 1.00Lx0.62W x 0.35 H 25.4mmx15.7mmx8.9mm
Series PTN78060W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 7
Surface Mount NO
Package / Case 7-DIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
