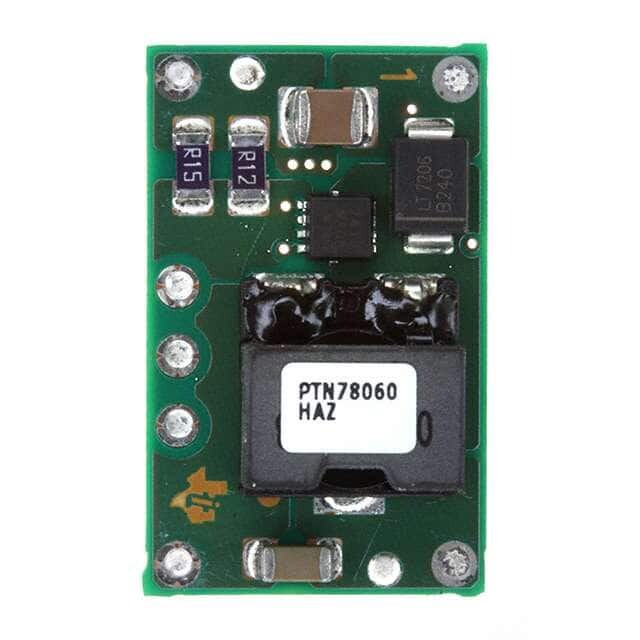

PTN78060HAZT
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG SW WIDE-VIN 3A ADJ HORZ SMD
PDF
/
Buying Options
Total Price: USD $18.45
Unit Price: USD $18.448144
≥1 USD $18.448144
Inventory: 326
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Surface Mount
Package / Case 7-SMD Module
Surface Mount YES
Number of Pins 7
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTN78060H
Size / Dimension 1.00Lx0.62W x 0.38 H 25.4mmx15.7mmx9.7mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Max Power Dissipation 66W
Technology HYBRID
Terminal Position DUAL
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Base Part Number PTN78060
Pin Count 7
Number of Outputs 1
Efficiency 96%
Voltage - Input (Max) 36V
Output Voltage 22V
Max Output Current 3A
Voltage - Output 1 11.85V~22V
Voltage - Input (Min) 15V
Input Voltage-Nom 20V
Output Current 3A
Output Power 45W
Max Output Voltage 22V
Control Technique PULSE WIDTH MODULATION
Current - Output 1 3A
Min Output Voltage 11.85V
Switcher Configuration BUCK
Switching Frequency-Max 660kHz
